RO pressure tank
RO pressure tank

RO pressure tank

RO-152
Application
* Store pure water and ensures drinking water availability during power and water outages.

* 12L, 16L, 19L RO plasteel tanks suitable for harsh environment applications. Includes all the features of normal steel tanks with the added advantage of a rugged polypropylene shell for improved chemical and corrosion resistance.

Feature
* High-density butyI rubber diaphragm design. k free O-ring sealed air valve cap for dual leak prote 304 stainless steel water connection (Inlet & outlet connection).

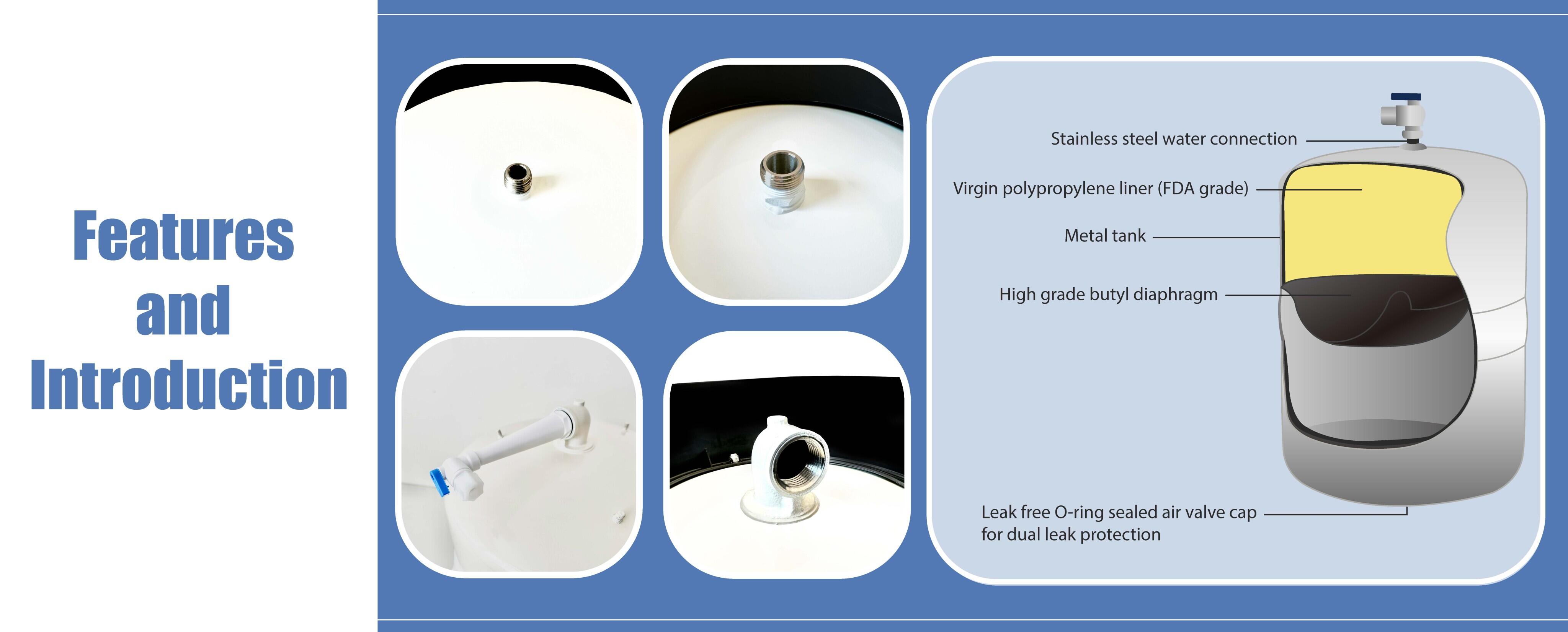

* Certified to NSF/ANSI 58 & CE/PED. Stainless steel water connection (Inlet & Outlet) Virgin polypropylene liner(FDA grade) Metal tank High grade butyl diaphragm

Height   39.0cm
Diameter   29.0cm
Base    N/A
Connection Specification    1/4" NPT
Accessories    1/4" Ball Valve
Volume    21 Liters (5.5 Gallon)
Packaging Volume    0.04 CBM/m³
Package Weight    3.91 kg
Packing Method    1 pcs/carton
Pallet Stacking    80 pcs/pallet

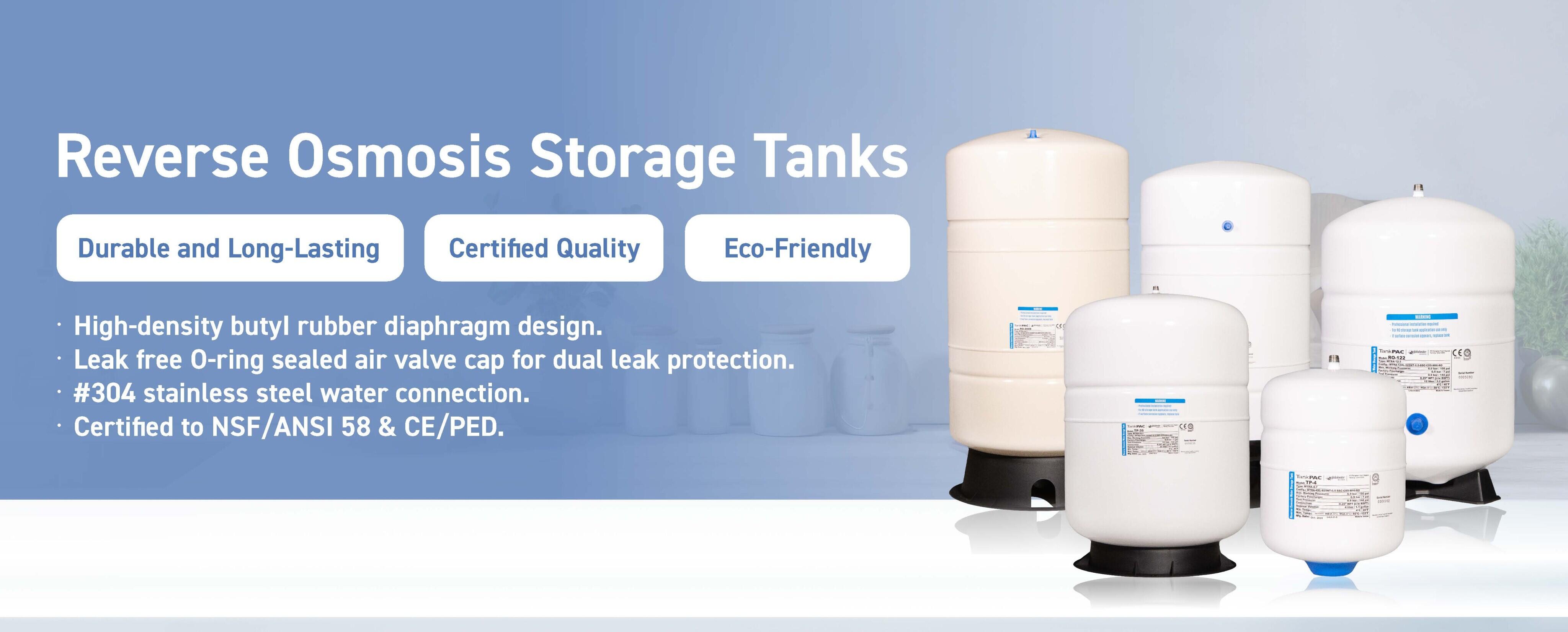

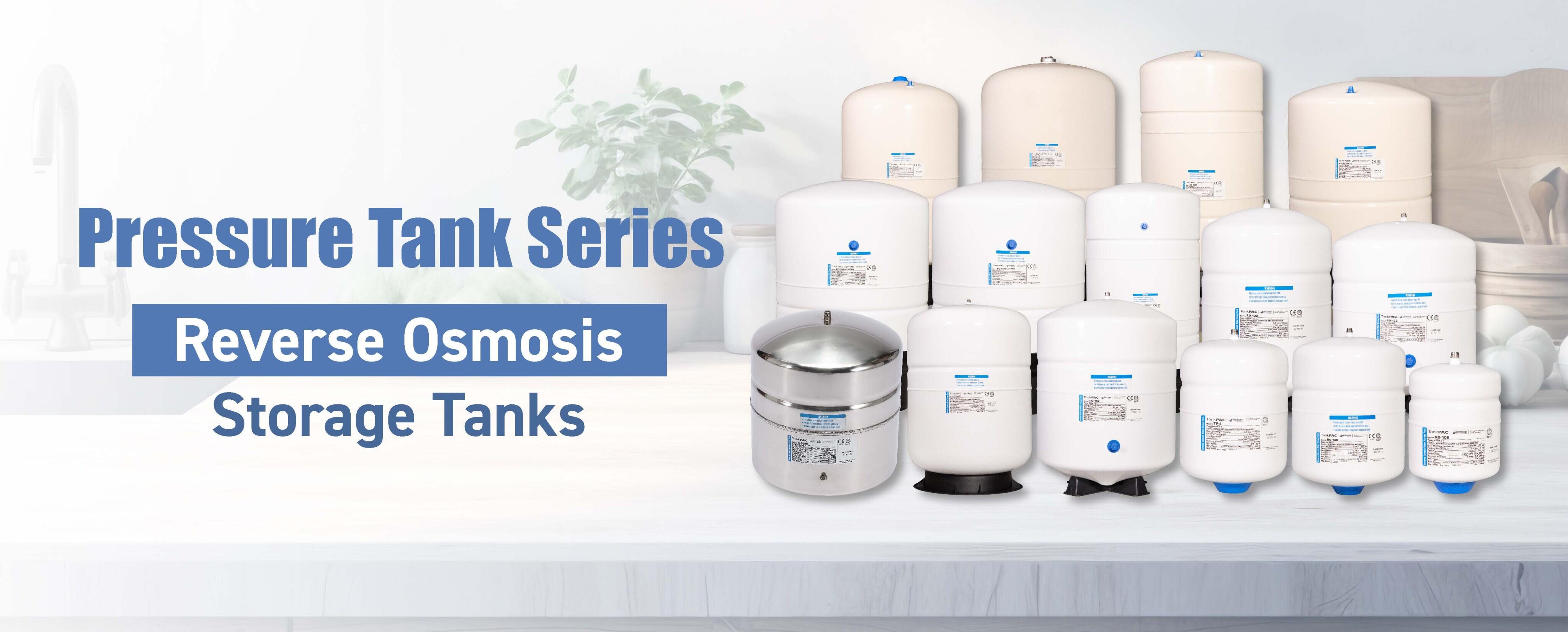

Reverse Osmosis Storage Tanks

Durable and Long-Lasting、 Certified Quality、Eco-Friendly

  • High-density butyI rubber diaphragm design.
  • Leak free O-ring sealed air valve cap for dual leak protection.
  • #304 stainless steel water connection.
  • Certified to NSF/ANSI 58 & CE/PED.

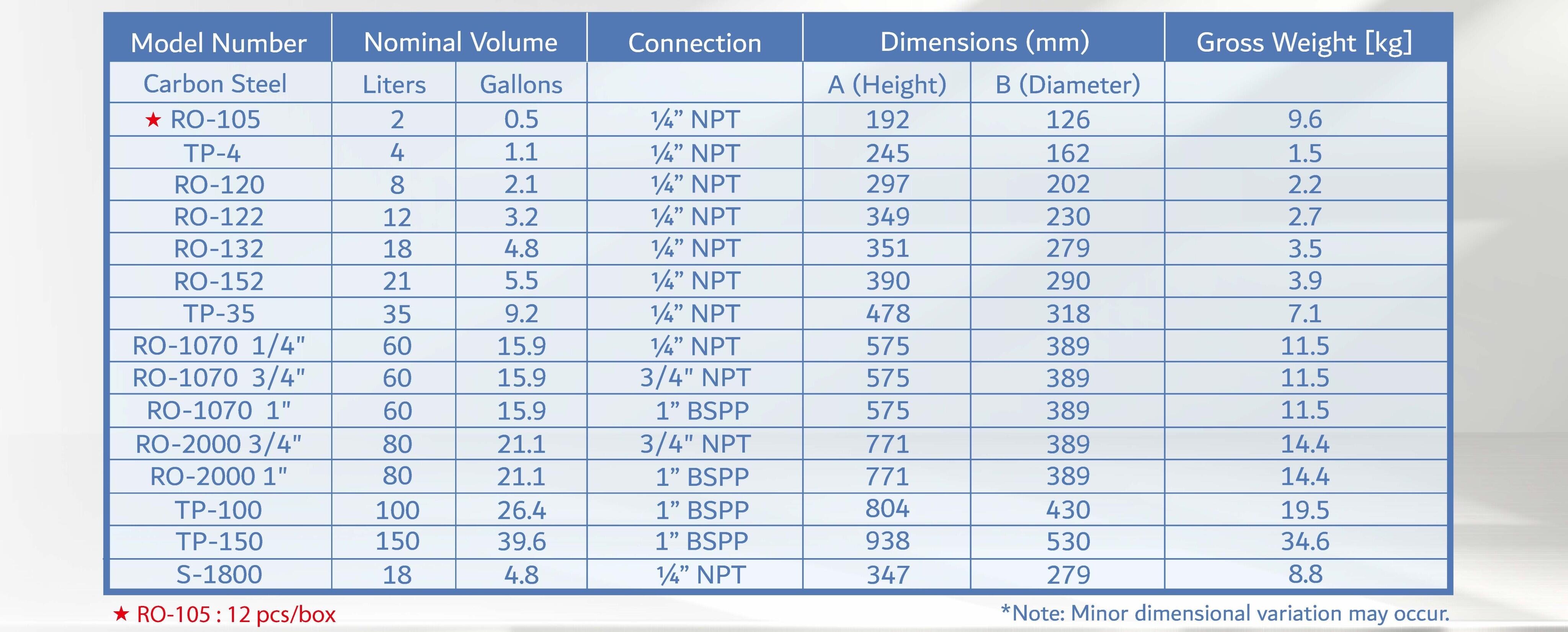

Product modelDimensionsConnector specificationsTotal volume specificationsPacking carton volumePacking carton weightPacking methodPallet stacking
 Height (CM)Diameter (CM)Base height (CM)inchinchlitergallonCBM/m³KilogramBoxNumber of pieces/shallow plate
RO iron barrel

RO-105

19.2

12.6

N/A

1/4”NPT

1/4”ball valve

2

0.5

0.049

11.47

12 pieces/carton

504 pcs/board

TP-4

24.5

16.2

1/4”NPT

1/4”ball valve

4

1.1

0.008

1.57

1 piece/box

252 pcs/board

RO-120

29.7

20.2

1/4”NPT

1/4”Ball Valve

8

2.1

0.014

2.20

1 piece/box

150 pcs/board

RO-122

34.9

23.0

1/4”NPT

1/4”Ball Valve

12

3.2

0.02

2.76

1 piece/box

125 pcs/board

RO-132

35.1

27.9

1/4”NPT

1/4”ball valve

18

4.8

0.03

3.50

1 piece/box

80 pcs/board

RO-152

39.0

29.0

1/4”NPT

1/4”ball valve

21

5.5

0.04

3.91

1 piece/box

80 pcs/board

TP-35

47.8

31.8

4.5

1/4”NPT

1/4”ball valve

35

9.2

0.06

7.14

1 piece/box

40 pcs/board

RO-1070

51.4

38.9

N/A

1/4”NPT

1/4”ball valve

60

15.9

0.10

10.51

1 piece/box

30 pcs/board

51.4

38.9

N/A

3/4”NPT

N/A

1 piece/box

30 pcs/board

57.5

38.9

10.4

1”BSPT

1”connecting pipe+3/8”ball valve

1 piece/box

30 pcs/board

RO-2000

77.1

38.9

10.4

3/4”NPT

N/A

80

21.1

0.13

14.41

1 piece/box

22 pcs/board

77.1

38.9

10.4

1”BSPT

1”connecting pipe+3/8”ball valve

0.13

1 piece/box

22 pcs/board

TP-100

80.4

43.0

12.9

1”BSPT

1”connecting pipe+3/8”ball valve

100

26.4

0.17

19.58

1 piece/box

16 pcs/board

TP-150

93.8

53.0

12.9

1”BSPT

1”connecting pipe+3/8”ball valve

150

39.6

0.30

34.6

1 piece/box

4 pcs/board
