RO pressure tank (plastic tank)
RO pressure tank (plastic tank)

RO pressure tank (plastic tank)

TP-12P
Application
* Store pure water and ensures drinking water availability during power and water outages.

* 12L, 16L, 19L RO plasteel tanks suitable for harsh environment applications. Includes all the features of normal steel tanks with the added advantage of a rugged polypropylene shell for improved chemical and corrosion resistance.

Feature
* High-density butyI rubber diaphragm design. k free O-ring sealed air valve cap for dual leak prote 304 stainless steel water connection (Inlet & outlet connection).

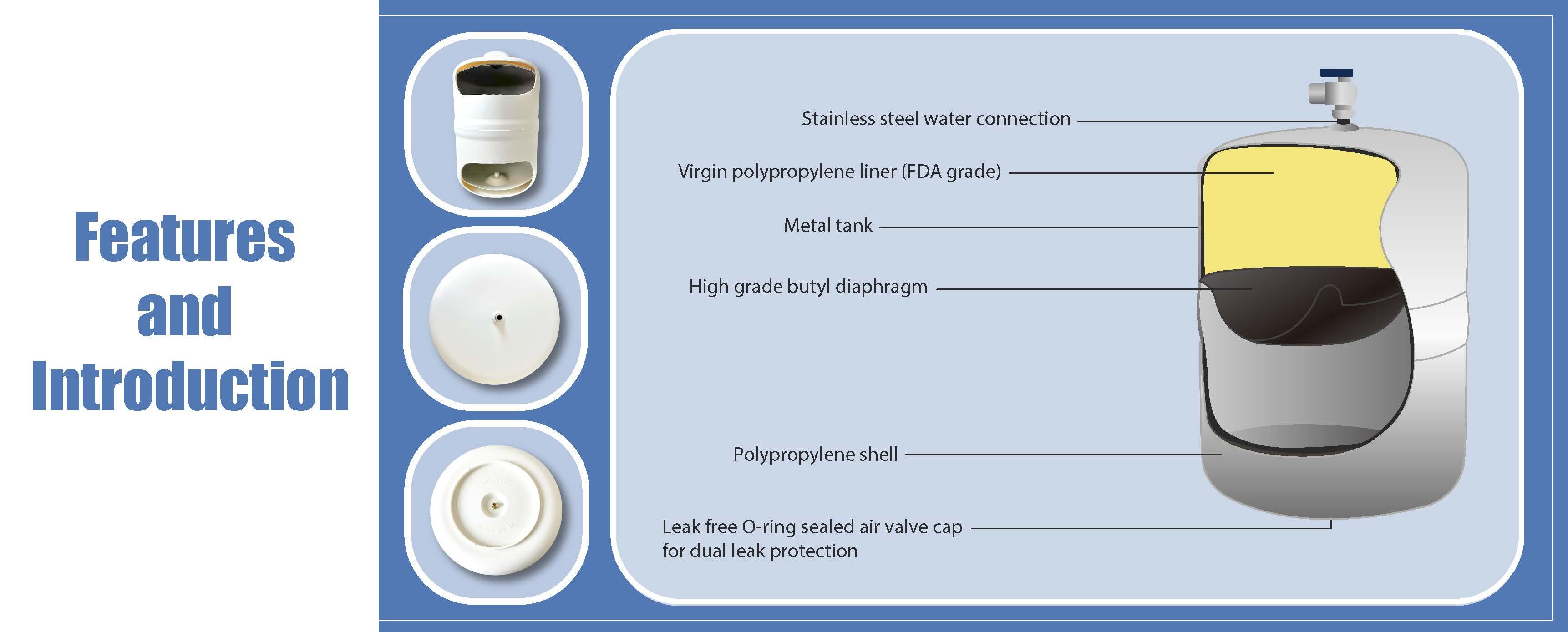

* Certified to NSF/ANSI 58 & CE/PED. Stainless steel water connection (Inlet & Outlet) Virgin polypropylene liner(FDA grade) Metal tank High grade butyl diaphragm

Height   38.2cm
Diameter   24.2cm
Base  N/A
Connection Specification 1/4"NPT
Accessories 1/4" ball valve
Volume    12 Liters (3.2 Gallon)
Packaging Volume    0.02 CBM/m³
Package Weight    3.36 kg
Packing Method    1 pcs/carton
Pallet Stacking    100 pcs/pallet

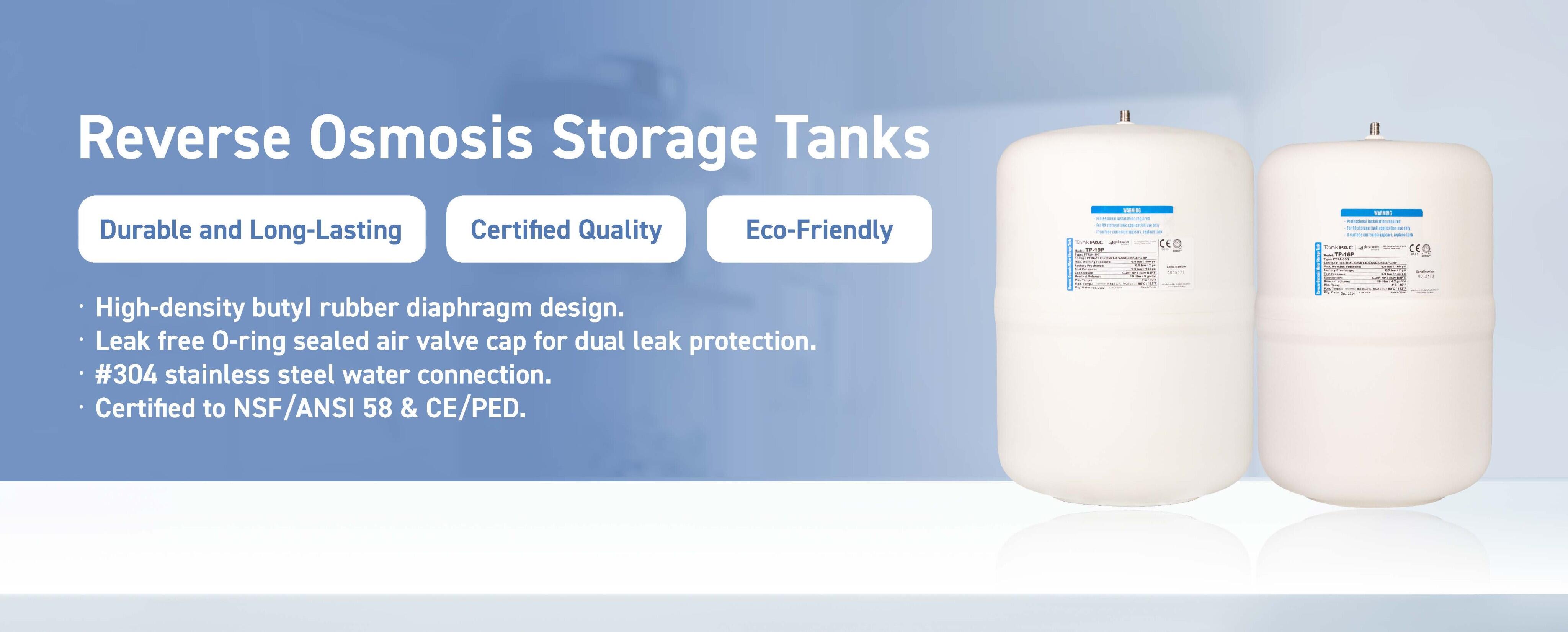

Reverse Osmosis Storage Tanks

Durable and Long-Lasting、 Certified Quality、Eco-Friendly

  • High-density butyI rubber diaphragm design.
  • Leak free O-ring sealed air valve cap for dual leak protection.
  • #304 stainless steel water connection.
  • Certified to NSF/ANSI 58 & CE/PED.
Product modelDimensionsConnector specificationsTotal volume specificationsPacking carton volumePacking carton weightPacking methodPallet stacking
 Height (CM)Diameter (CM)Base height (CM)inchinchlitergallonCBM/m³KilogramBoxNumber of pieces/shallow plate
5. RO Pressure Tanks (Plastic)
TP-12P38.224.2N/A1/4”NPT1/4”ball valve123.20.023.361 piece/box100 pcs/board
TP-16P39.025.1N/A1/4”NPT1/4”ball valve164.20.033.761 piece/box80 pcs/board
TP-19P40.027.6N/A1/4”NPT1/4”ball valve195.00.034.21 piece/box80 pcs/board
